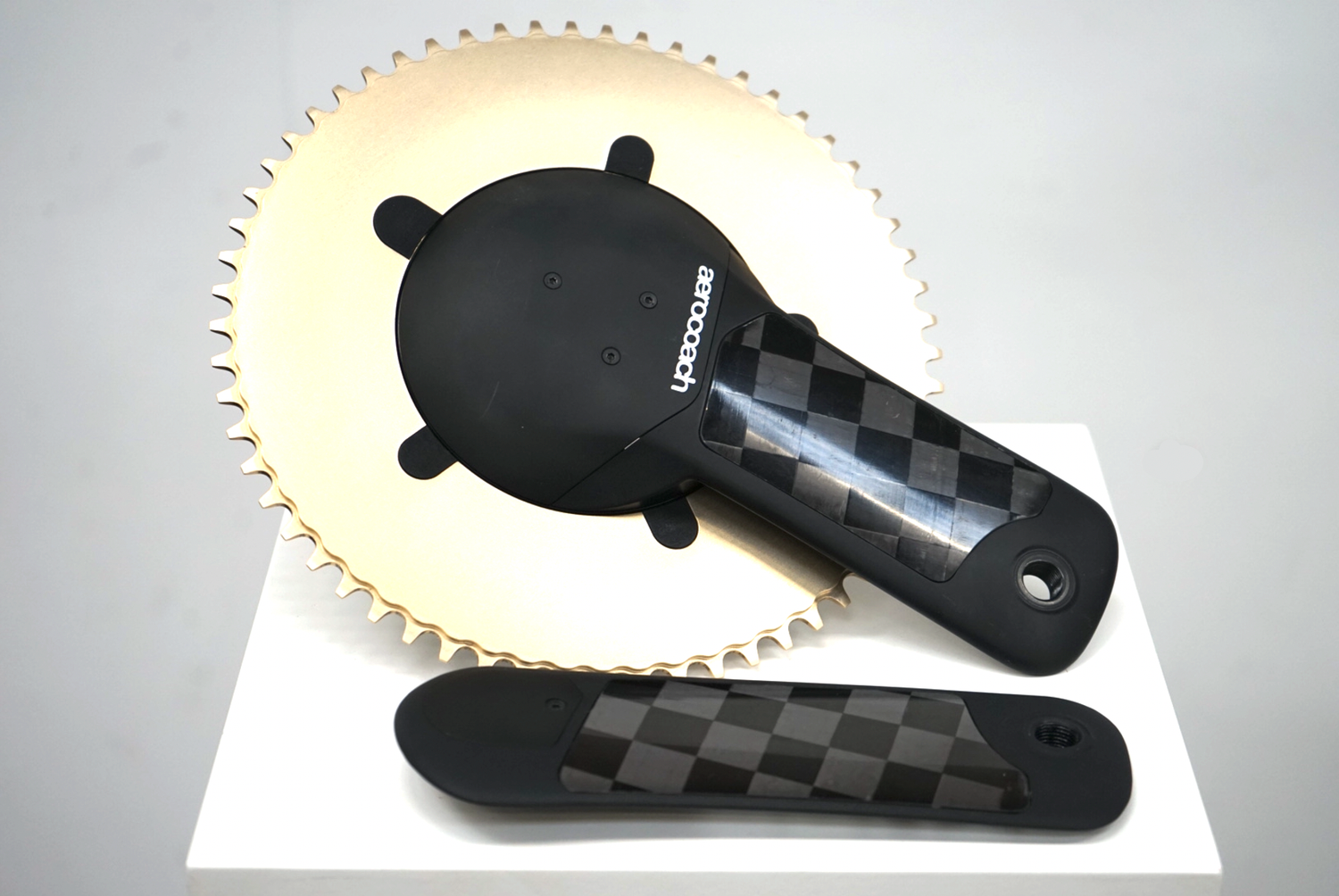

AeroCoach BRUTE power meter track cranks

Name: AeroCoach BRUTE power meter track cranks
SKU: BRUTECRANK
Price: 1412.5 GBP
Availability: InStock

Store / Drivetrain components

SKU BRUTECRANK

£1,412.50

Crank option

Please choose

Crank length

Please choose

Quantity:

Product Details

MBN: BRUTECRANKS

PLEASE NOTE: BRUTE POWER METER CRANKS WILL BE SHIPPED IN MARCH 2025

POWER DATA AS WELL AS IMPROVED AERODYNAMICS FOR YOUR TRACK BIKE

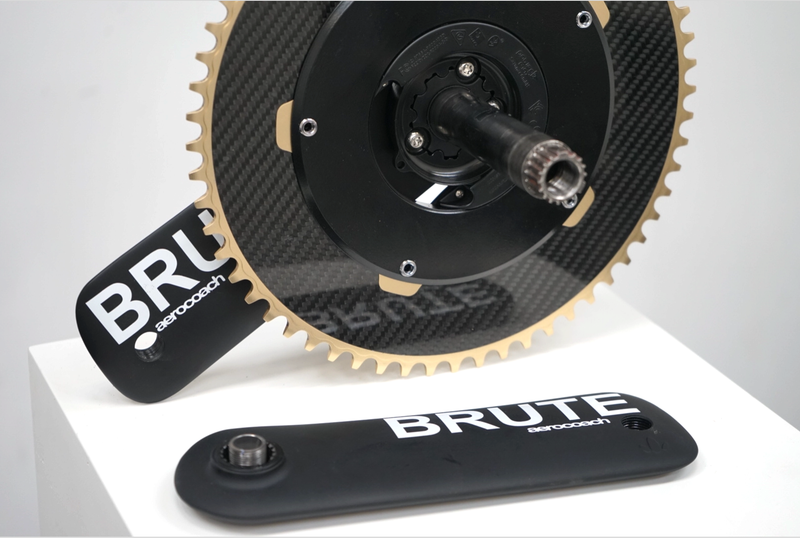

AeroCoach BRUTE power meter track cranks utilise our knowledge in aerodynamics to reduce your aerodynamic drag, as well as incorporating a custom built power2max® spider for reliable, consistent power meter data.

The UCI legal modular BRUTE system allows you to change crank arms for different lengths and also use a non power spider if you already have a power meter solution, with no change in your aerodynamics using the integrated crank cover.

Narrow Q Factor, a standard 24mm axle, standard 144bcd to fit all track chainrings, integrated chainring holes all combine in a seamless aero package.

AERODYNAMICS

BRUTE power meter track cranks give you the most versatility compared with other cranks that have either aero design or power capability. See the wind tunnel data below for the benefit of using the combined power & aero design of the BRUTE cranks.

POWER METER

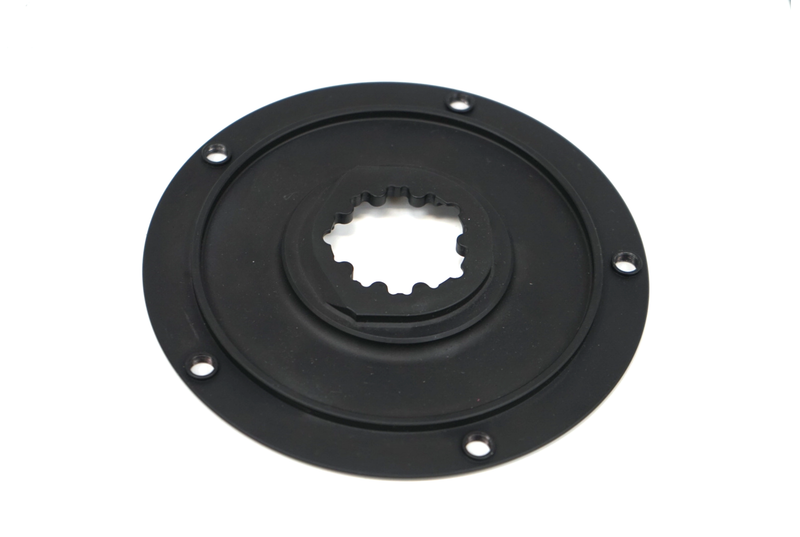

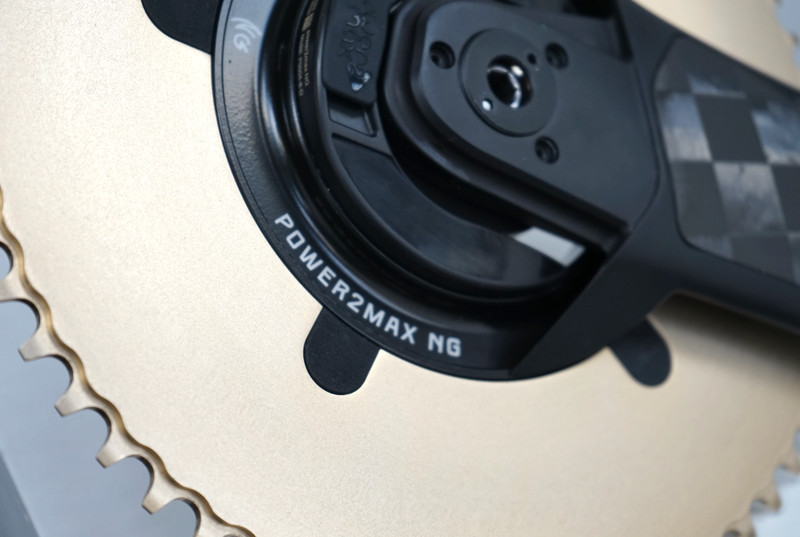

At the heart of the BRUTE power meter cranks is a custom power2max® NG spider. This is rechargeable, and ANT+/BLE enabled, uses no frame mounted magnets/sensors to provide power data and is a fit and forget solution for high accuracy power on the track.

For more information on the technology in NG power2max® power meters please visit the power2max® website.

DESIGN

AeroCoach BRUTE cranks are made using a hollow aluminium/carbon design, to reduce weight but provide exceptional stiffness with a 70mm deep aero design. A removable cover hides the power/non power spider, keeping the aerodynamic benefit regardless of which option you choose.

A 24mm titanium axle ensures that you can fit the BRUTE cranks into any bike - whether a BSA threaded bottom bracket shell or integrated bottom bracket system. Self extracting crank bolts are hidden behind a cover on the drive and non drive side, requiring just an 8mm allen key as normal to remove your cranks from the bike.

BRUTE cranks utilise a narrow Q Factor of 136mm to improve aerodynamics and gross efficiency without moving outside of self selected Q Factor ranges*

Please note the BRUTE track cranks are only compatible with the custom BRUTE power2max® spider, not any other power2max® spider.

UCI LEGALITY

BRUTE power/non power cranks are fully UCI compliant.

SPECIFICATIONS

CRANK: 7075 aluminium

AXLE: 24mm titanium

SPIDER BCD: 144mm

ASSEMBLED WEIGHT INC SPIDER COVER & AXLE: 990g ± 20g

POWER METER SPIDER WEIGHT: +25g

USAGE: INDOOR/OUTDOOR

BOLTS: STAINLESS STEEL

WHAT'S INCLUDED

BRUTE aluminium/carbon crankarms

Spider (either power2max or non power) & spider cover

Chainring bolts

power2max® warranty card & charging cable (BRUTE power option only)

* Q FACTOR RESEARCH

Disley BX, Li FX. The effect of Q factor on gross mechanical efficiency and muscular activation in cycling. Scandinavian Journal of Medicine and Science in Sports. 2014

Disley BX, Li FX. Metabolic and kinematic effects of self-selected Q Factor during bike fit. Reseach in Sports Medicine. 2014
