ADJUSTABILITY

Phaser aero base bars allow for changes in stack height in 10mm increments, and the standard round pole clamp can be set at 15deg, 20deg or 25deg with the use of the AeroCoach tilt block adapter.

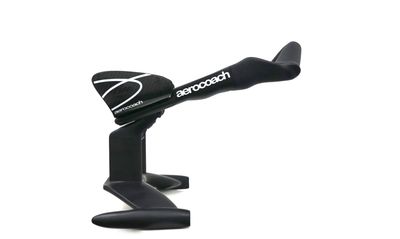

An Ascalon adapter is also available to mount Ascalon extensions, at 15deg, 20deg or 25deg.

A 10mm bridge stacker is available for total stacker height of 50mm (including bridge).

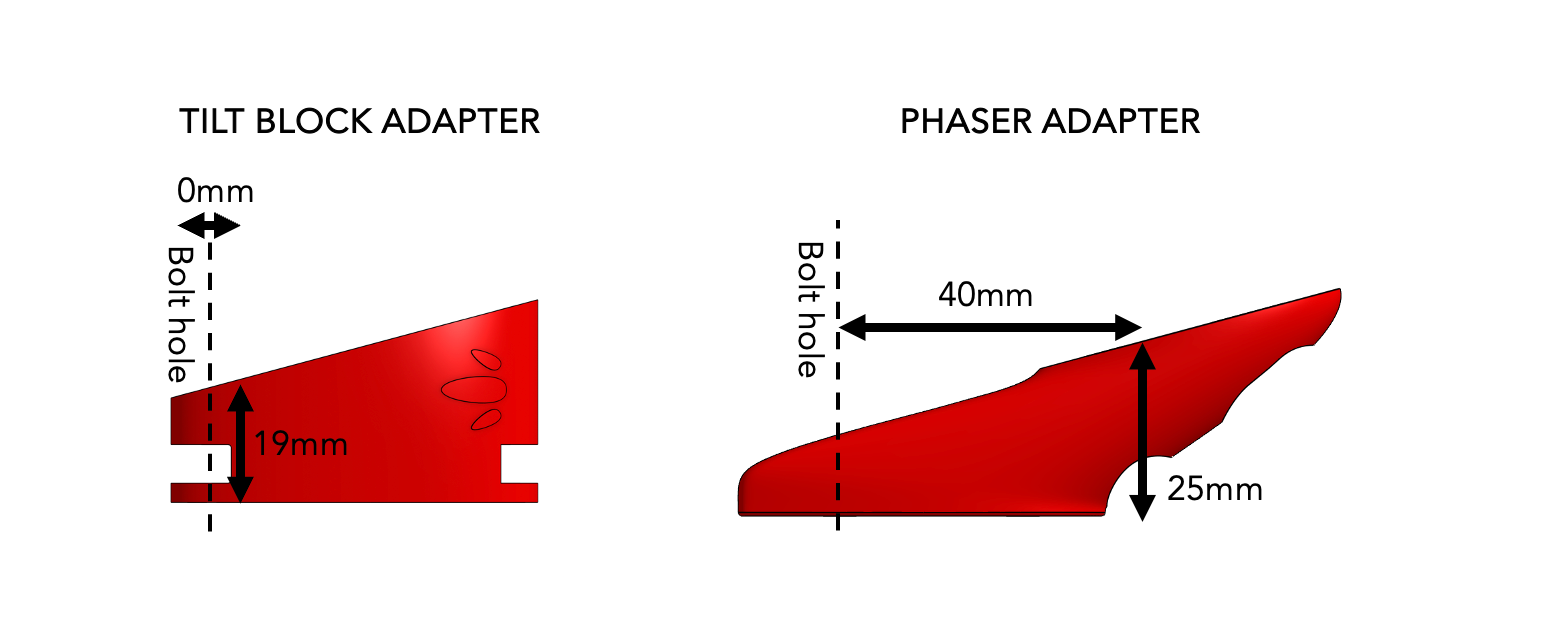

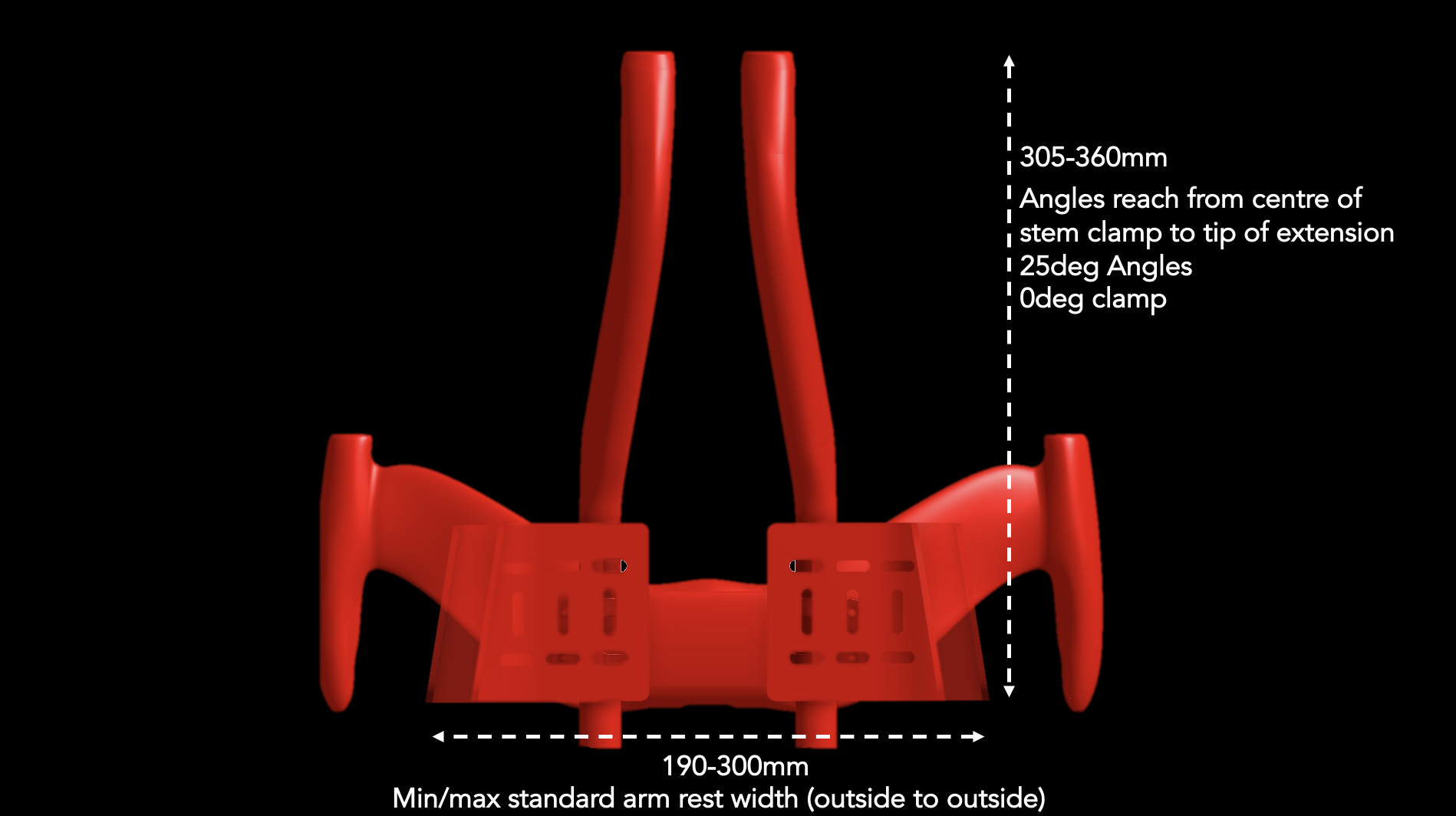

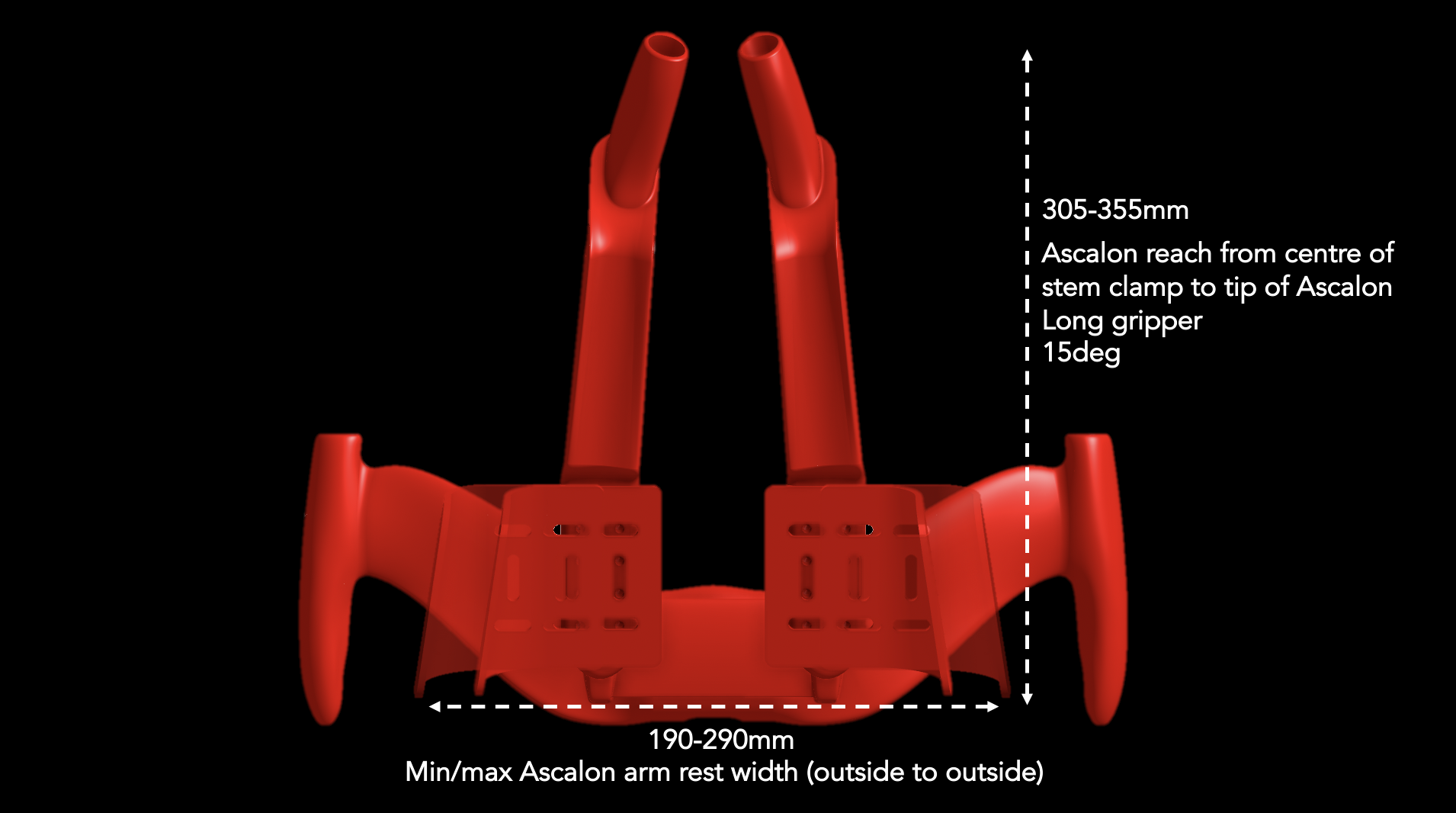

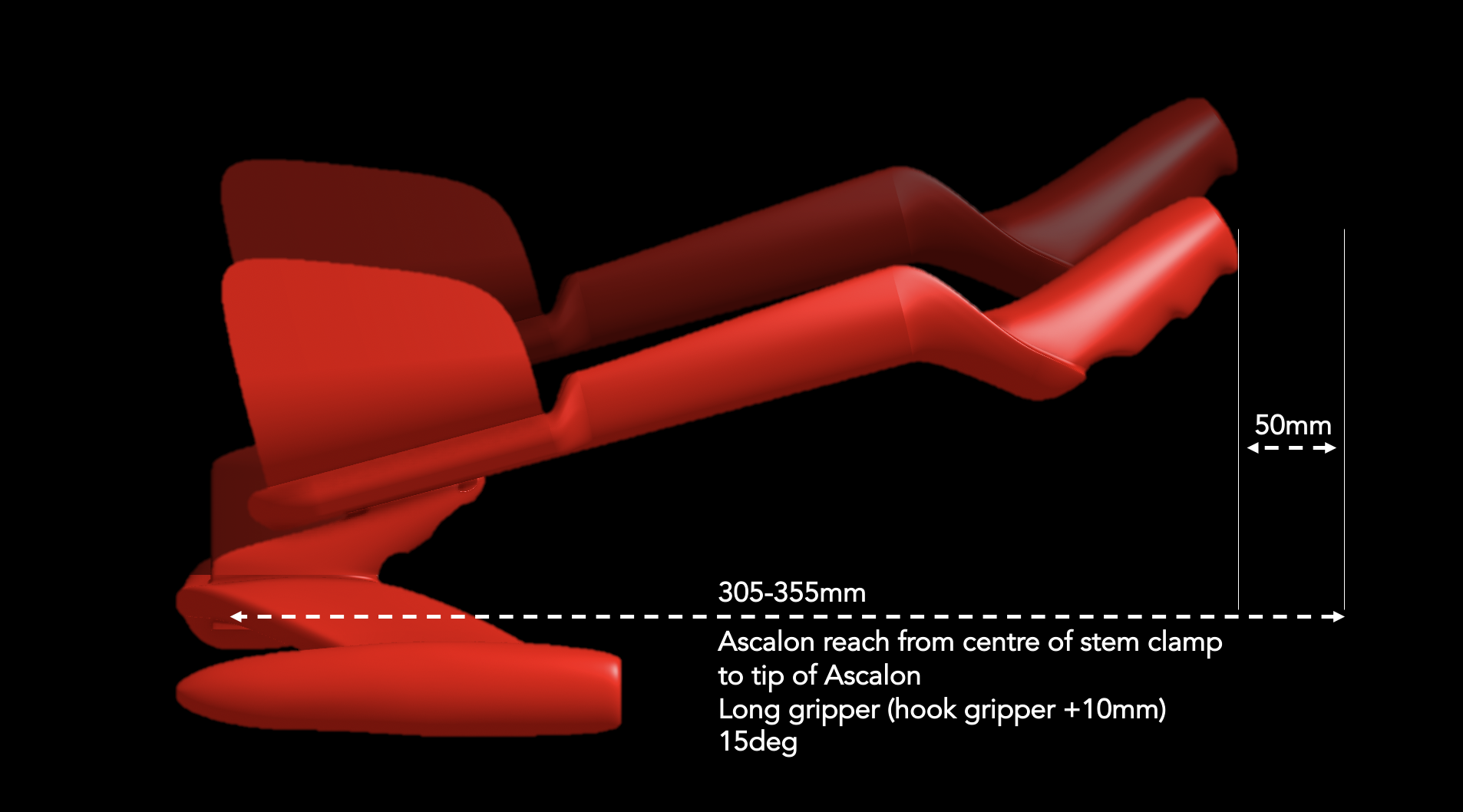

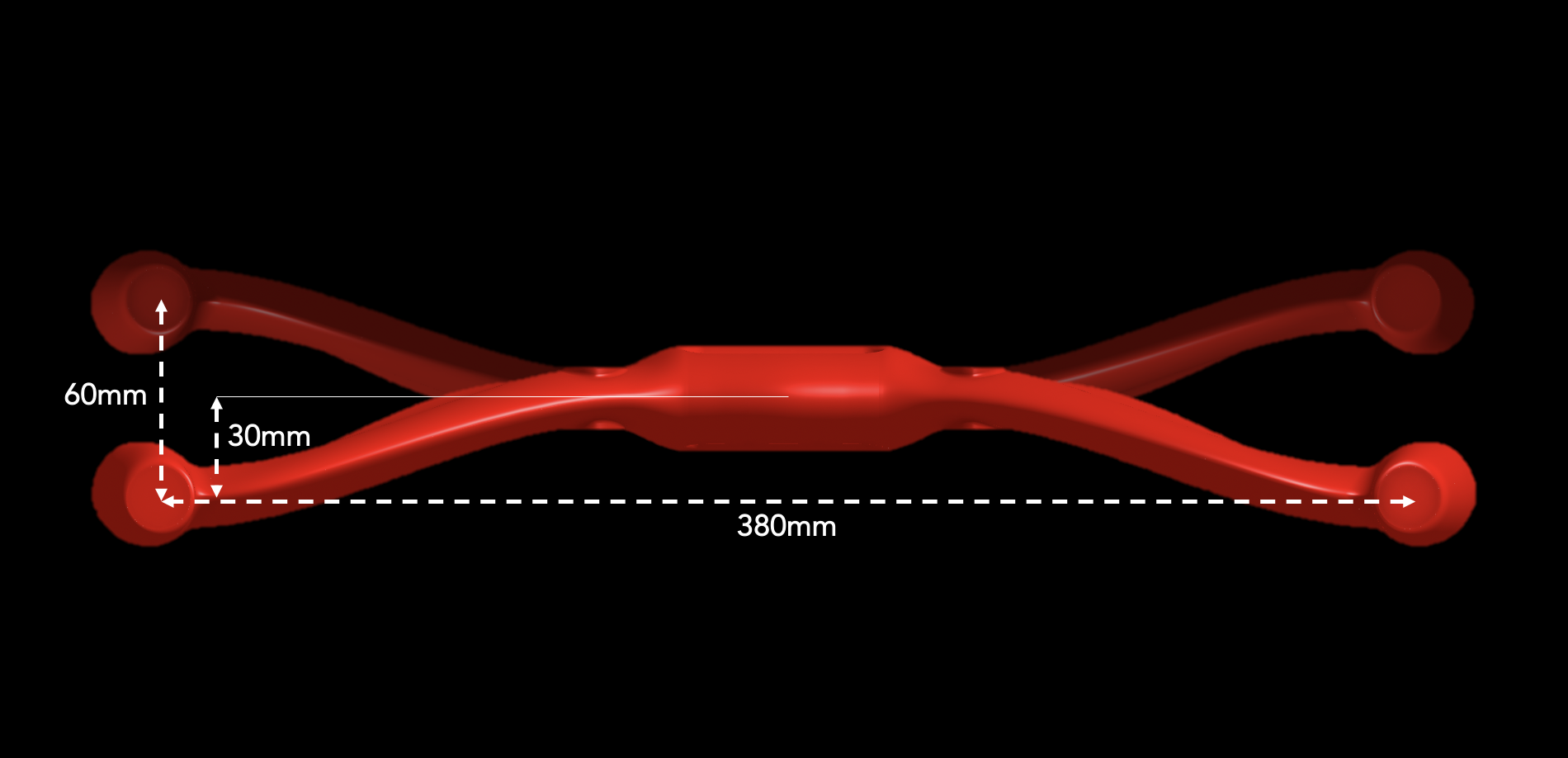

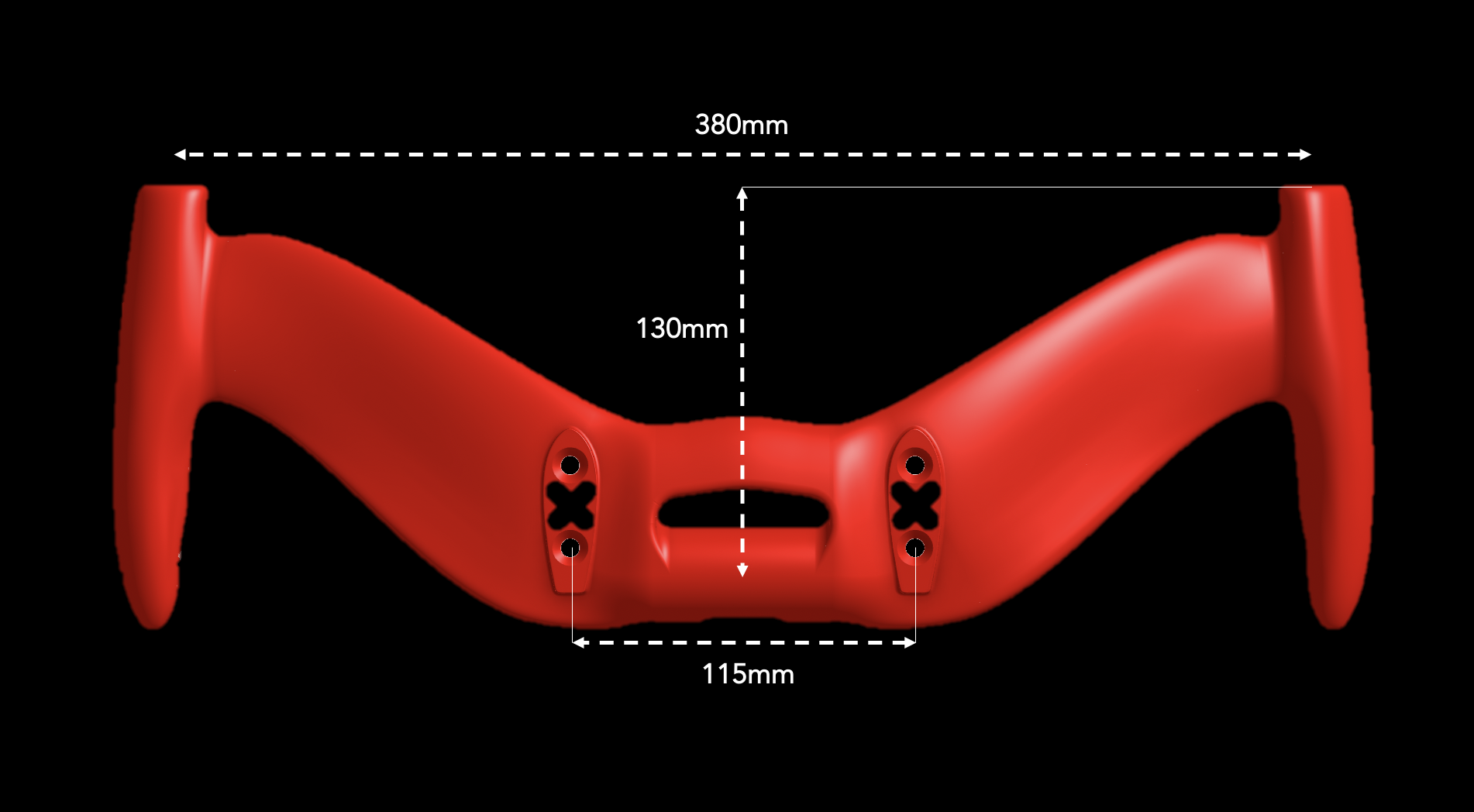

Please see the diagrams below for all dimensions.

AERODYNAMICS

TRANSFER OF EXISTING AEROCOACH 22.2MM EXTENSION CLAMPS / TILT BLOCKS

If you already own AeroCoach tilt blocks (15, 20 or 25deg) or conversion blocks (0deg), with AeroCoach 22.2mm extension clamps or Ascalons mounted on top, and you would like to transfer this complete setup to the Phaser base bar, please select the Extension adapters option 'Conversion kit for existing owners of AeroCoach tilt block adapters'. You will receive matched spacers, threaded bars and bolts that are the correct length to transfer the tilt / conversion blocks onto the Phaser base bar with no stackers present.

If you already own AeroCoach stackers for tilt blocks, and would like to transfer these across, along with existing tilt blocks, please choose the option 'Conversion kit for existing owners of AeroCoach tilt block adapters', and also select the longer bolts needed for your preferred stacker height from HERE (select 'AeroCoach Phaser' in the Model selection).

If you already own AeroCoach 22.2mm extension clamps (without tilt blocks / tilt block stackers) that you would like to transfer over to mount directly on the Phaser base bar, please select the Extension adapters option 'None - I already own AeroCoach extension clamps which I will mount directly to the Phaser bar'. You will receive matched spacers, which convert the bottom of the extension clamps to sit directly on the Phaser bar, and bolts.
