Production lead time: 6-8 weeks
Stack height from top of stem to centre of arm rest is 25mm, stem height is 43mm. Spacers are placed below the central V stacker to enable stack adjustment in 5mm increments from 25mm to 75mm, as well as the ability to locate the aerobar up/down the steerer tube for additional stack ranges.
REACH
Base bar reach is 235mm to end of hand pod from the steerer tube centre. 60mm of reach adjustment is possible in 10mm increments by moving the extensions along the top of the central V stacker. As the extensions move at an angle relative to each other, extension tip separation is 35mm at minimum reach and 31mm at maximum reach.
ARM REST WIDTH
Maximum arm rest width is 233mm outside/outside at the rear of the Align Wing Carbon arm rests. Minimum width is 185mm. Micro adjustment is possible in all dimensions for fore/aft as well as angle using the slotted holes in the base of the arm rest.
STEERER TUBE
The Vorzug bars are only compatible with standard 1 1/8" steerer tubes. The steerer tube must be cut to 5mm below the upper level of the stem or highest steerer spacer. If the steerer tube is cut 5mm below the upper level of the stem the special Vorzug top cap must be installed.
For an explanation of the UCI regulations please see the video below.

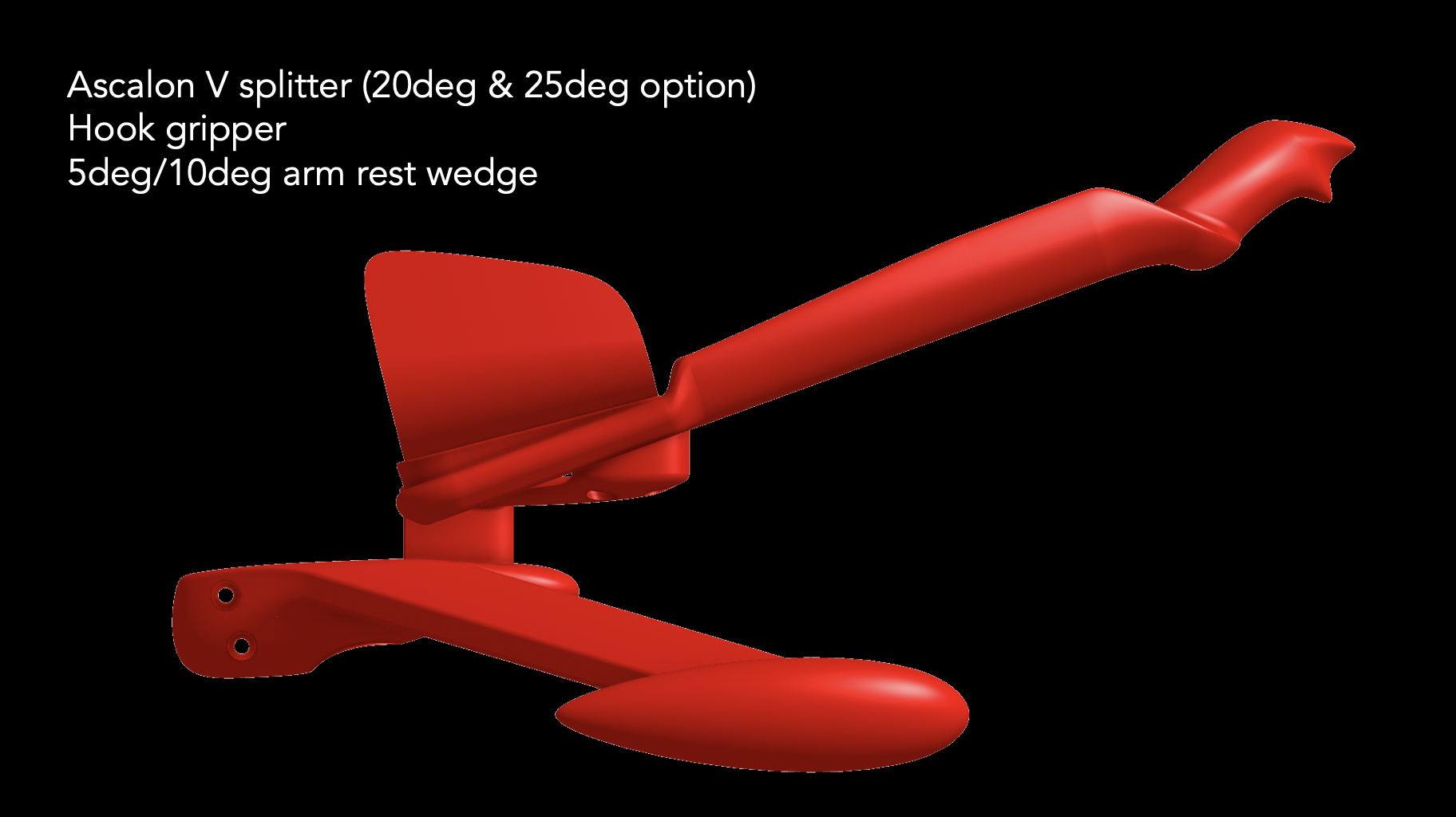

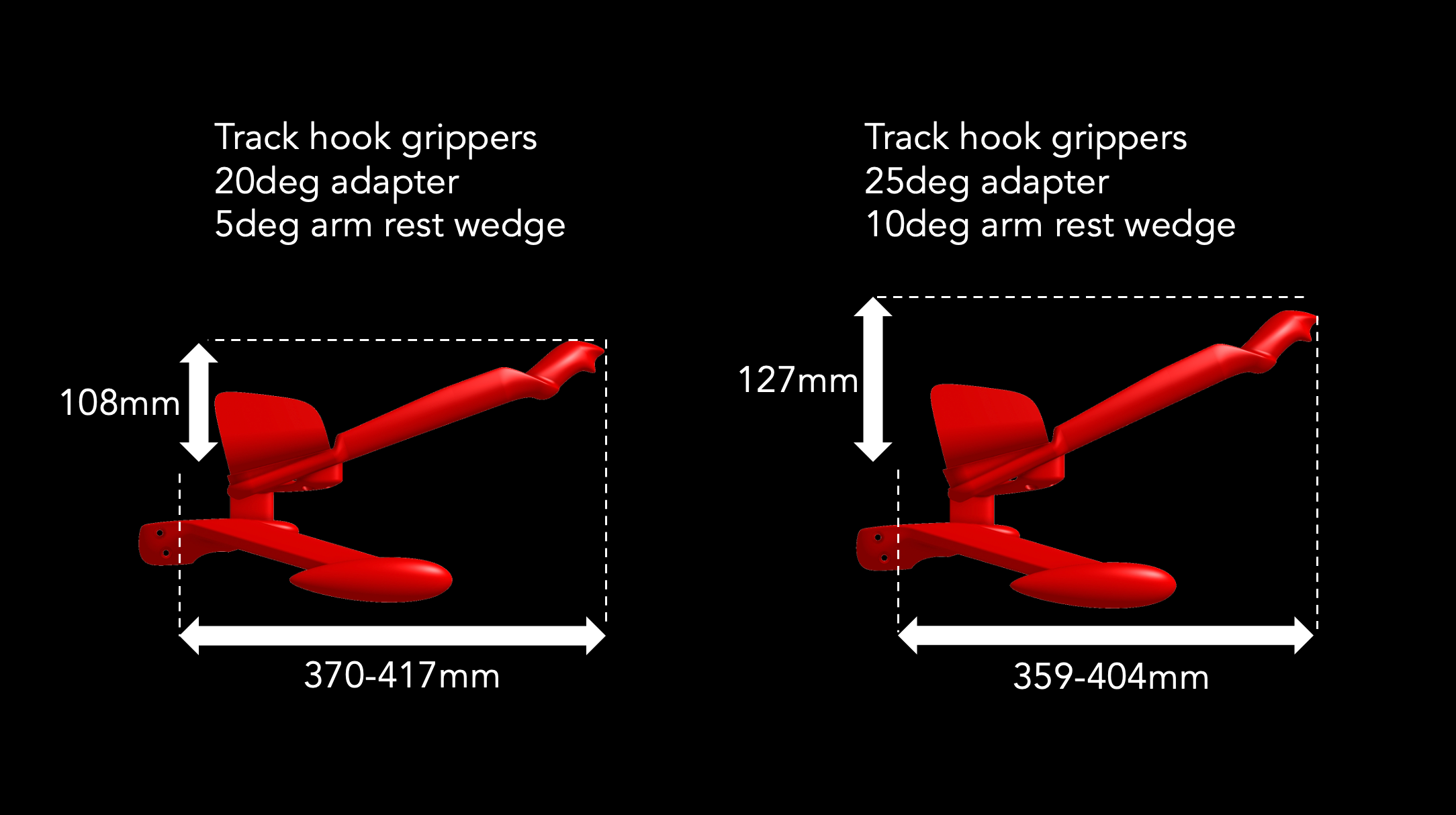

If selecting the 12cm UCI option from the Vorzug dropdown menu, you will receive Ascalon hook gripper integrated extensions, a 20deg Vorzug to Ascalon v-splitter, and 5deg Ascalon arm rest wedges in place of the Vorzug extensions and v-splitter.
If selecting the 14cm UCI option from the dropdown menu, you will receive Ascalon hook gripper integrated extensions, a 25deg Vorzug to Ascalon v-splitter, and 10deg Ascalon arm rest wedges.
1x pair Ascalon 5deg or 10deg arm rest wedges (if Ascalon option selected)
Please note that Vorzug extensions must only be installed on Vorzug handlebars, otherwise warranty will be void.
