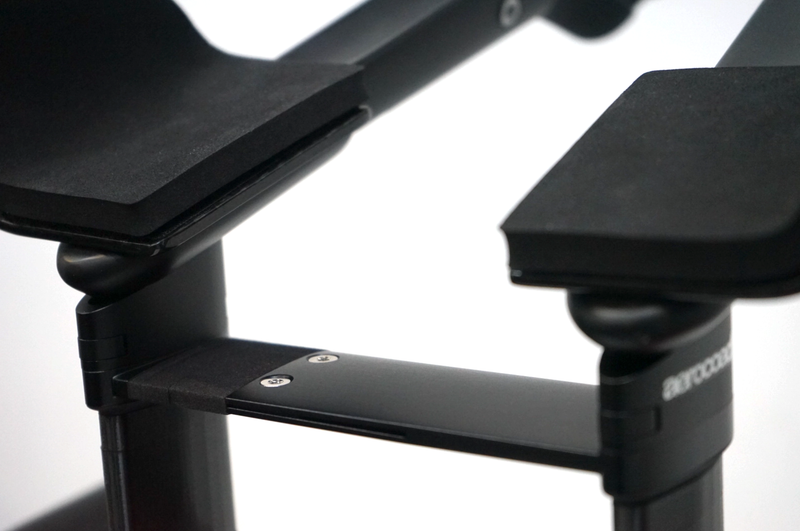

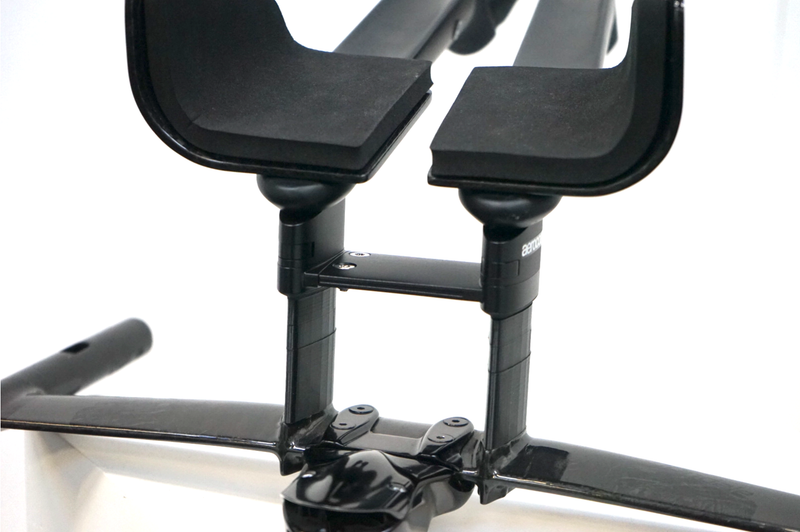

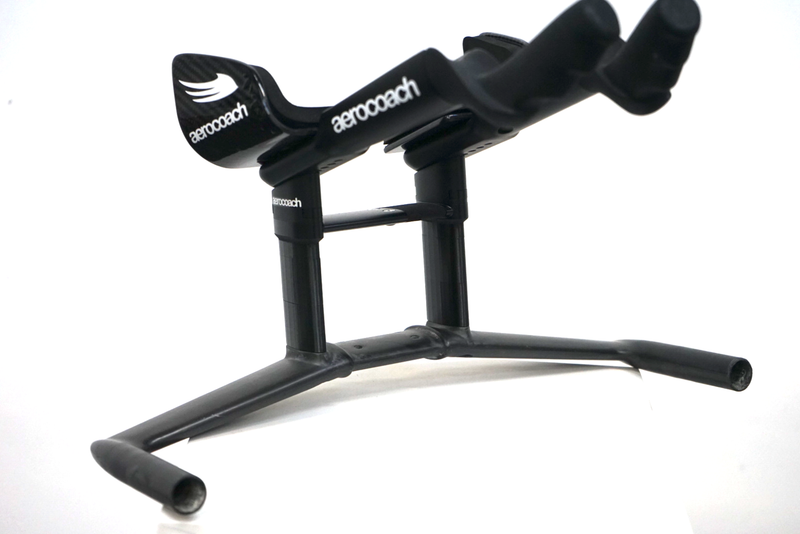

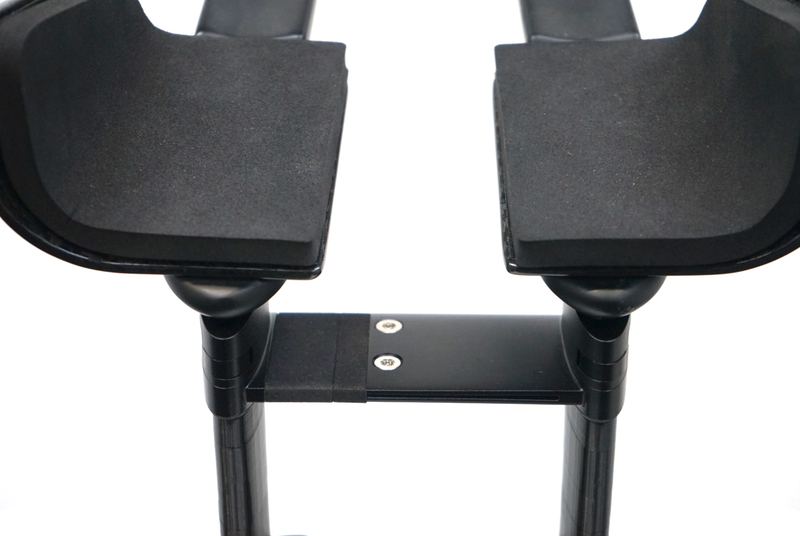

The AeroCoach universal adjustable bridge is designed to integrate with AeroCoach tilt block adapters or conversion blocks on a higher stack aerobar setup where extra stiffness is required and provides 10mm of additional stack height.

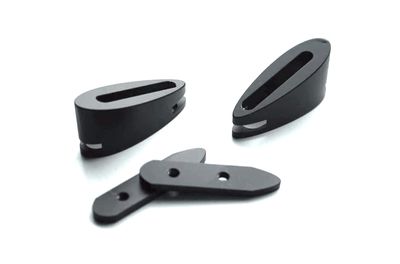

AeroCoach tilt block adapters or conversion blocks are placed on top of the bridge (including any AeroCoach 10mm stackers
), and the bridge is mounted on top of your existing stackers with a matched spacer in between. Different matched spacers are available which are either specific to a particular kind of base bar, or a universal option for M5/M6 bolt standards.
Please note the universal M5/M6 options will work only with up to 39mm bolt spacing (ie. base bars which are compatible with our tilt block adapters, see HERE
)

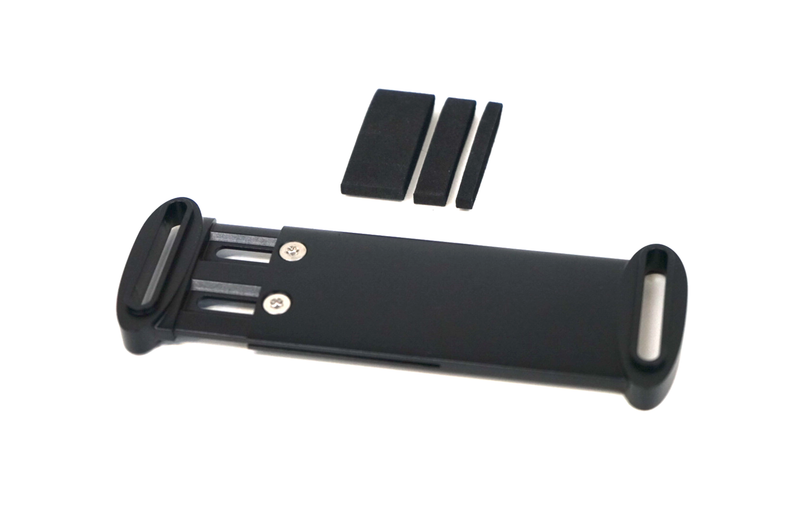

Two sizes of the bridge are available, both width adjustable to allow you to fine tune your spacing. 3D printed sleeves are included to ensure a smooth profile. Fully UCI compliant.
Please refer to manufacturer instructions for your base bar for the maximum allowable stack height with / without a bridge.
