AeroCoach Angles carbon aerobar extensions
SKU ANGLESCARBON
£95.83
1
Product Details
MBN:
ANGLESCARBON
STABILITY/COMFORT/BIOMECHANICS
The AeroCoach Angles carbon extensions for aerobars are ergonomically designed, incredibly stiff and use an industry standard 22.2mm diameter.

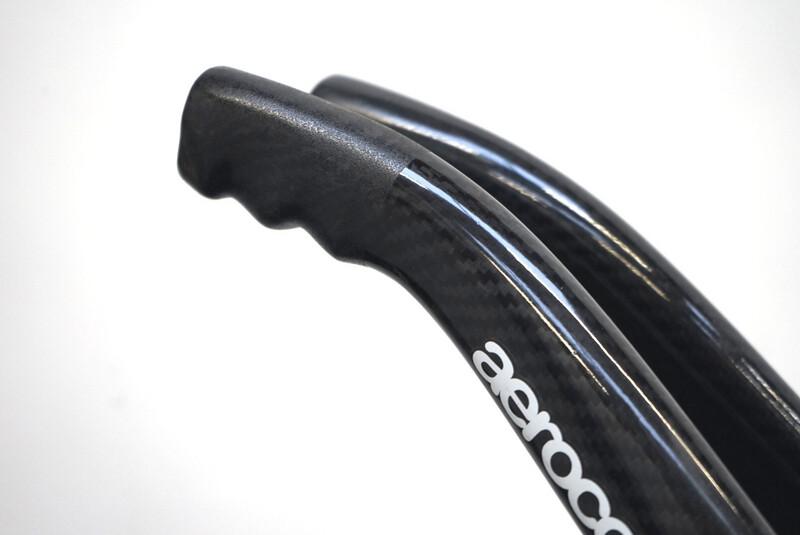

The end gripper section has finger grooves to allow you to stay locked into the aero position, with shaped ends to allow internal cable routing, compatible with all mechanical shifters and electronic shifters (such as Di2 or SRAM eTap). No drilling for cables is required.
UCI LEGALITY GUARANTEED WITH 25deg ANGLES
Never fail the UCI 1.3.023 10cm vertical regulation ever again! Relevant only for races held under UCI regulations (not triathlons or races run under UK CTT regulations), the 25 degree Angles are specifically designed to ensure that you cannot fail the 10cm height rule when using electronic gearing. Please note that the UCI extension reach rule must still be adhered to. In some situations the 35deg Angles can also stay within UCI vertical limits - please see the geometry chart below for full information. To achieve UCI legality with 35deg Angles we recommend the use of our Align Wing carbon arm rests, 15deg angled spacers and a micro adjust spacer kit for fine tuning.AERO COMPUTER MOUNT
PLEASE NOTE - STANDARD COMPUTER MOUNTS ARE NOT COMPATIBLE WITH THE ELLIPTICAL SECTION OF THE ANGLES. Garmin or Wahoo mounts are available using the drop down list above. Each computer mount comes with an optional 7 degree adapter to keep your Garmin centralised in your plane of view, even if you have adjusted your Angle tips to be closer together. A standard round tube adapter is also included for round extensions.CHOOSE YOUR ANGLE

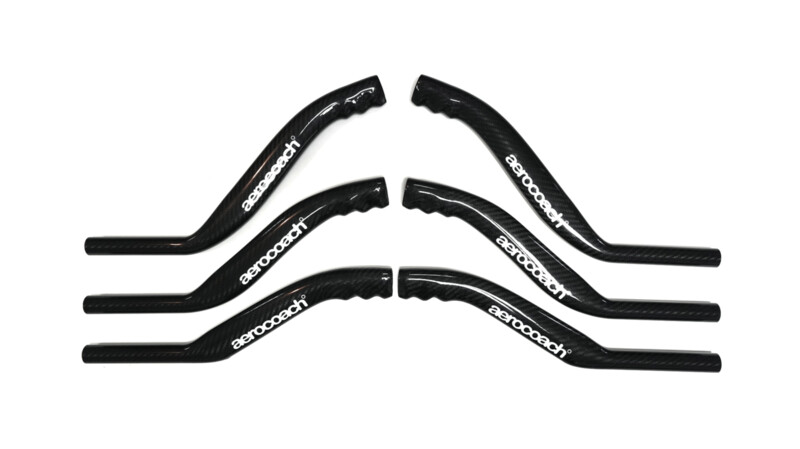

Please refer to the geometry information below to choose the appropriate set of Angles for you. Each pair of standard Angles comes in either 25 degree, 35 degree or 45 degree bend, and all have the same overall horizontal length of 360mm. The end grippers bend at a 25deg angle to the central elliptical section. If using angled spacers we recommend to use 10deg spacers with 25deg extensions, 15deg spacers with 35deg extensions and 20deg spacers with 45deg extensions. If purchasing the aerobar upgrade bundle with angled spacers included, the above combinations are what will be supplied. GEOMETRY
SPECIFICATIONS
Material: Carbon fibreAerobar compatibility: All standard extension clamps with 22.2mm diameter
Shifter compatibility: All makes of electronic and mechanical shifters
Weight (pair): 280g (25 degree)
Usage: Indoor/Outdoor
