Track cycling inner tube Crr testing: TPU vs latex

PH587141 • 30 July 2025
Reducing rolling resistance is imperative to improved cycling performance, particularly during high speed track cycling. A tyre with a high rolling resistance will require more power to travel at the same speed, whilst a low rolling resistance tyre requires less power.

We have previous shown that top end clincher tyres, such as the FMB/AeroCoach Pista Ultra 3000 have extremely low rolling resistance. We have also found that for road tyres at road pressures, latex inner tubes are the best option for reducing Crr compared with TPU tubes.

In this test we explore the difference between TPU and latex tubes but at higher, track relevant pressures and with a track specific tyre rather than a road tyre.

The goal of this test was to establish the Crr difference between latex and TPU tubes at higher pressures and with track specific tyres, in this case a Vittoria latex tube and Schwalbe Aerothan TPU tube fitted to an FMB/AeroCoach Pista Ultra 3000 24.5mm clincher tyre.


In our previous inner tube Crr test, using Continental GP5000 25mm clincher tyres, we found that there was a ~5.5% increase (=worse) Crr when swapping from a Vittoria latex inner tube to a Schwalbe Aerothan.

In order to test rolling resistance, we swapped between the tubes as a rider rode a bike on rollers, measuring power output and speed, as well as atmospheric conditions and bike/rider weight. This allows us to calculate what is known as the Coefficient of Rolling Resistance (or "Crr"), which can be used to model the power output required to travel on a normal road. A lower Crr is better - in that it requires less power to travel at the same speed.

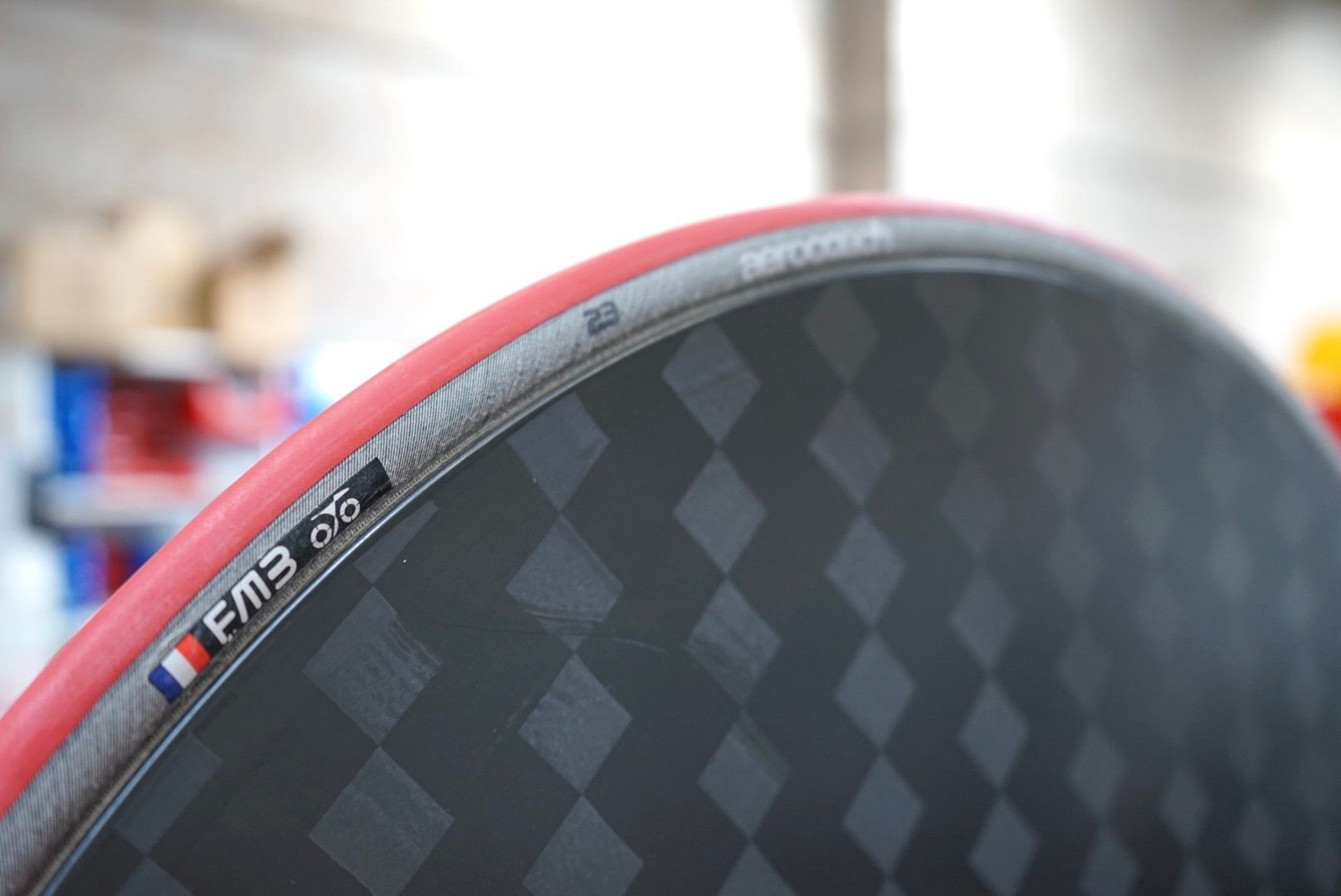

The FMB/AeroCoach Pista Ultra 3000 24.5mm tyre was fitted to an aluminium rim (external width 24.7mm, internal width 19.6mm). The pressure was 130psi for all tubes.

We found in this test, that when using a track specific clincher tyre (FMB/AeroCoach Pista Ultra 3000), at a high pressure of 130psi, that the difference between a latex tube and TPU tube was greater than when we had previously tested it on a road tyre with road pressures.


The increase in Crr (=worse performance) with the TPU tube in this test is the equivalent of ~5.7w at 55kph, for a pair of wheels. This is ~2.9w per wheel.

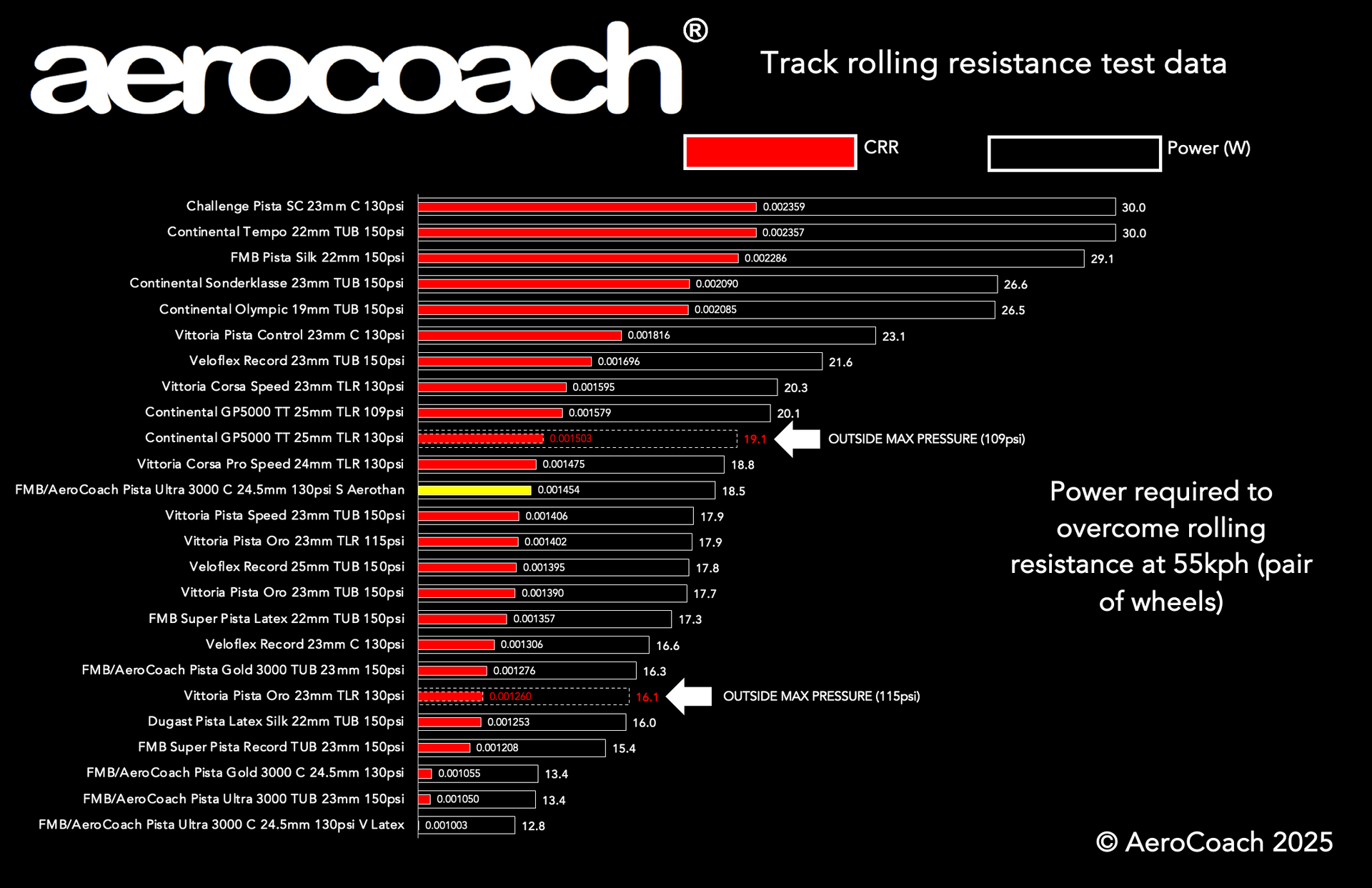

In the chart below the Schwalbe Aerothan is in yellow and sits just above the Vittoria Pista Speed tubular in 23mm (which uses a latex tube internally)

In this test we found that, similarly to the previous test conducted with a road tyre and at road pressures, using a Vittoria latex inner tube resulted in a better (lower) Crr than a Schwalbe Aerothan TPU tube.


However at the higher pressures used in track cycling, and with a track specific clincher tyre, there was a greater Crr difference between latex/TPU. This may be because track clincher tyres do not have a puncture protective belt under the tread, like road tyres, so the inner tube has more of an impact on the overall Crr of the tyre and tube system compared with a thicker tyre which increases total Crr.
